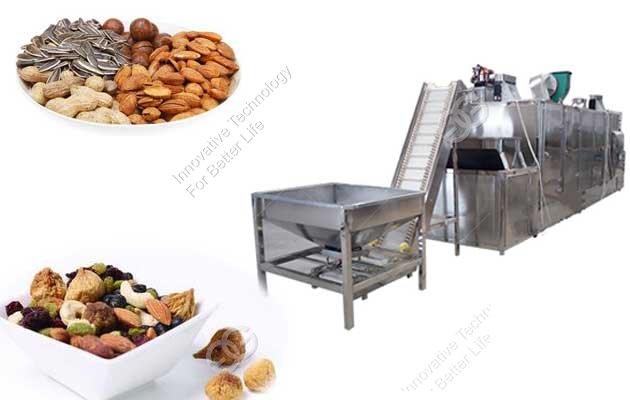

Continuous Peanut Drying Machine Advantage
Advantage:
2. Equipment configuration flexibility Gongyi silver-based mechanical network with a dryer can use the mesh belt washing system and material cooling system.
3. Mesh dryer (mesh belt dryer) Most of the air recycling, a high degree of energy conservation.
4. Dryer unique sub-wind device, so that the distribution of hot air more uniform, to ensure product quality consistency.
5. Heat source can be used steam, heat oil or gas hot air furnace supporting.
working principle
The main principle of the belt-type dryer is to spread the material evenly on the mesh belt, dragged by the drive in the dryer to move back and forth, hot air flow through the material, the water vapor from the drainage hole, So as to achieve the purpose of drying. Mesh belt with 12-60 mesh wire mesh belt, the length of the box by the combination of the standard section, in order to save the site, the dryer can be made into a multi-layer, common two rooms three, two rooms five, length 6 -40m, the effective width of 0.6-3.0m, mesh belt, transmission, into the air duct, the air duct, fan (hot air source separately) and other components.
Material organic head into the slowly drying through drying, mesh belt depending on the type of material depending on the type of material and water content. Airflow to the use of negative pressure, porous intake, to ensure effective drying area, uniform distribution of wind speed, improve the drying effect. To get the drying effect and the appropriate production, the water content of the material, the net speed, the air volume and the wind temperature must be appropriate, reasonable and organic combination.
